Cast Iron Gate Valves: Features, Benefits, and Uses

Could a single, well-made valve cut maintenance time and keep water systems running longer?

I make and supply Cast Iron Gate Valve Manufacturer at Yaxing Valve, and I stand behind their build quality and support for U.S. customers. This line is engineered for longevity in waterworks and light-industrial systems.

Each unit pairs a sturdy iron body with a machined wedge track and easy handwheel control. The result is dependable shutoff, simple maintenance, and consistent performance in building mechanical rooms, fire protection loops, and utility distribution.

I support specifiers with fast submittals and transparent details: sizes, end connections, pressure classes, and accessories. My site stores account preferences and carts via cookies to simplify repeat orders.

If you need a practical replacement or a cost-effective option for new projects, compare my cast iron gate benefits with your current hardware to see lifecycle value and real-world fit.

Why Yaxing Valve Cast Iron Gate Valves Deliver Reliable Flow Control

I verify each Yaxing Valve product myself to confidently recommend it for demanding U.S. applications.

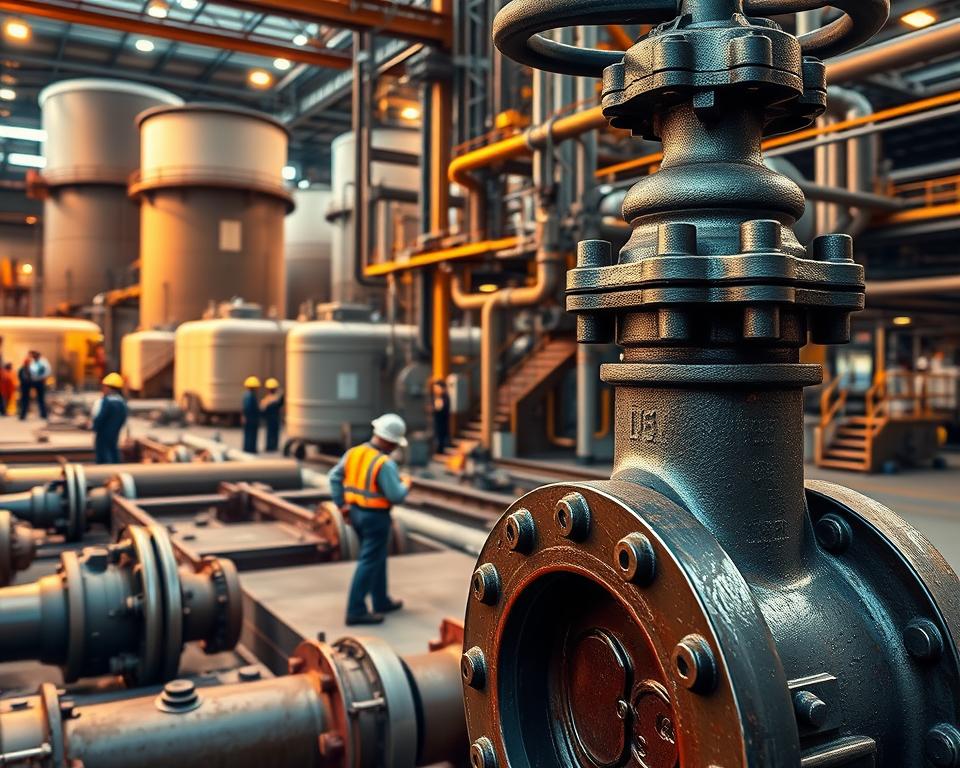

Built for industrial performance with a robust cast iron body

Each unit uses a robust cast-iron body to resist deformation under load. Precision machining with metal-to-metal seating provides tight shutoff at critical moments.

Shaped for maximum flow and low pressure drop

The internal path is optimized to lower turbulence and pressure loss. This helps pumps operate efficiently while reducing energy consumption.

• Dimensions and testing are validated to ANSI norms and internal criteria.
• I finish stem, wedge, and bonnet interfaces to cut friction and keep handwheel torque steady over years of use.
• I set body thickness targets for durability while keeping weight manageable for installers.
• Documentation lists tests/standards so purchasing can wrap orders quickly.

Key Feature	Benefit	Specification
Cast-iron body	Strong structural integrity	Dimensional stability verified
Streamlined gate	Reduced pressure drop	Improves pump efficiency
Stem & handwheel finish	Smoother operation	Steady torque over service life
Test documentation	Speedier submittal clearance	ANSI-aligned test reports

cast iron gate valves: Materials, Design Details, and Performance Essentials

I detail body, sealing, and stem choices so selection and ordering stay simple.

Body/Bonnet/Wedge Materials

The material stack includes a cast-iron body/bonnet, a precision-machined wedge, and metal-to-metal seating for dependable isolation across water service and general industry.

Stem and handwheel configurations

Non-rising stems and inside-screw stems are available for tight spaces. Every thread form and packing scheme is listed in the product details.

Standards and performance limits

I provide qualified pressure/temperature ranges and ANSI-aligned end connections so engineers can confirm fit quickly.

• Stem/handwheel interface tuned for steady torque.
• Geometry and smooth internal surfaces minimize headloss through the gate.
• Series codes with submittal-ready specs shorten ordering cycles.

Part	Material / Type	Limit	Notes
Body & Bonnet	Cast-iron	Up to 150 psi	ANSI flange dimensions; welded or bolted
Wedge	Machined metal	Service temp −20° to 180°F	Metal-seat interface; smooth finish
Valve stem	Inside-screw / non-rising	N/A	Thread/packing details in datasheet
Product series	YX-100 and YX-200	2″ to 12″ sizes	Simple part numbering

Modern Applications, Install, and Operation

I guide contractors and owners on where these valves perform best in modern water and utility loops. The goal is straightforward selection, installation, and checks so crews wrap up commissioning with no call-backs.

Waterworks, building systems, and general industry applications

Use a full-bore unit where low restriction matters — long mains, service feeds, and bypass lines benefit the most.

Where vertical space is constrained, use non-rising or inside-screw stems in mechanical rooms and process loops.

Installation guidelines

Protect the valve body during handling; lift at rated points and avoid flange stress. Confirm alignment prior to final torque to prevent distortion/leaks.

Select compatible gaskets, torque in a cross pattern, and space supports to prevent line sag.

Operation & maintenance notes

Position the handwheel for easy access and verify free movement after packing tweaks.

Schedule torque checks under pressure, inspect wedge and packing, and confirm operating range versus the media. Log tag numbers in your maintenance account and link work orders in your CMMS.

Area	What to Do	When	Outcome
Application mapping	Choose full-port for mains; NRS for confined areas	Design stage	Less pressure loss and space efficiency
Handling & installation	Use lift points, align ends, torque in sequence	Install	Prevents leaks and flange distortion
Operational checks	Verify handwheel feel; test under pressure	Startup and routine	Predictable operation and tight shutoff
Maintenance tracking	Tag units and connect to CMMS/account	Ongoing	Speedy parts ID and replacements

Correct handling/commissioning extends service life and keeps Resilient Seated Gate Valve performing and looking like new.

Specify the Right Iron Gate Valve with Me at Yaxing Valve

Send line size, pressure, and flow targets so I can match the right series/type to your duty and temperature envelope.

I use a short checklist so submittals pass first review: end connections, inside screw or non-rising preference, and handwheel orientation. I record stem/handwheel and screw details to guide installation.

Check the image gallery for high-resolution views with layouts showing clearance and operator reach. Open an account so specs are saved, valves are tag-tracked, and drawings/one-page PDFs are linked.

Ask for a quick quote and I’ll confirm availability, lead times, alternates, and help you complete the order while you view the gallery. We only use cookies to keep your session and cart active.
